Flyback Converter Efficiency Improvement

Figure 1 is a simplified schematic of a flyback converter. Although a synchronous rectifier can help to improve a Flyback converters efficiency at full load it normally will sacrifice some efficiency at light load or no load.

Designing A Flyback Converter With The Max17291 Micropower Boost Converter Ic

Technologies are discussed to realize a DCDC Flyback converter with high power conversion efficiency.

Flyback converter efficiency improvement. The flyback topology The flyback transformer is not really a transformer in the conventional sense. The flyback transformer in this. Although it may be possible to design a flyback converter to work with DCM as well as CCM modes one thing must be remembered that during the transition from DCM to CCM mode this shifting function transforms into a 2-pole operation giving rise to low impedance for the converter.

The efficiency of the 80-W flyback SMPS from Fig. For a flyback the output L-C comprises the primary inductance of the power transformer and the output capaci - tor C OUT1. Light-load efficiency improvement for flyback converter based on hybrid clamp circuit articleYau2016LightloadEI titleLight-load efficiency improvement for flyback converter based on hybrid clamp circuit authorY.

Adding synchronous rectification and active clamp to the flyback con-verter can provide significant gains in efficiency. This paper presents a study of the losses in the integrated buck-flyback converter IBFC used as high-power-factor LED driver. In summary ACF flyback has several advantages over conventional RCD snubber-based flyback converters including efficiency improvement and EMI reduction both of which are considered as the enabling technologies for high-density power adapters.

The results are shown in Fig. When conventional self-driven synchronous rectification is implemented in a Flyback converter there is usually no DCM operation any more. The resulting filtered DC output voltage at V OUT1 like the forward is proportional to D and the power trans-formers turns ratio N.

Figure 1 The active-clamp flyback improves efficiency in isolated power supply design. To understand the importance of this ZVS you must first analyze the switching losses in Q L. With results of both the physical hardware and in-depth analysis further optimization.

The procedure of the improvement is done by obtaining the equations of the current through each component in terms of converter. The flybacks output filtering also differs from the forward supply. High efficiency high current isolated power supplies require a minimal number of components and thermal design is simplified when the LT8309 is combined with one of Linears line of no-opto boundary-mode flyback ICs.

Preventing this spike from becoming excessive. Simultaneously improve both efficiency and EMI. In addition the leakage energy of flyback transformer was utilized properly or sent to the input side for further improvement of converter efficiency.

Flyback Converter Basics and a Key Efficiency Improvement Technique Isolated Non-isolated 5 V 7 W Dual Output Flyback 15 W Flyback 30 W High Efficiency Flyback 30 W High Efficiency Flyback 12 V 5 V 7 W Flyback----7 W Class 2 15 W Class 3 30 W Class 4 Table 2 - PoE PD Flyback converter EVBs available from Silicon Labs. Converter and how to best improve upon each individual part. The aim of the study is to investigate the possibilities of increasing the efficiency of the IBFC converter.

These variations of the flyback converter use nondissipative clamping techniques to recycle leakage energy and improve efficiency. 5 shows the simplified power stage for a flyback converter with an active clamp and a synchronous-FET rectifier. In the standard form of a flyback converter the leakage inductance of the transformer creates a voltage spike on the drain of the primary field-effect transistor FET.

Hwu journal2016 IEEE International Conference on Industrial Technology ICIT year2016. Exist for the flyback converter such as References 2 3 and 4 of this topic. We know that the efficiency parameter is the crucial one.

Another benefit to having an active clamp is that you can have current flow both ways through the clamp FET which enables zero-voltage switching ZVS of the primary FET Q L from Figure 1. LT8309 is an easy-to-use fast secondary-side synchronous flyback rectifier driver in SOT-23 package. Efficiency Improvement Techniques For High Voltage Capacitor Charging Methods.

Standby power was also checked at 110 Vac and 265 Vac. By doing this converters were operated with very high frequency which improves converter efficiency power density and reduces converter size and weight. The flyback converter described in 2 is.

The focus is on efficiency because of its high value in the application to process. It is actually a coupled inductor. Abstract- This project presents an improvement of power factor and efficiency on fly back converter with Active Clamp TechniqueThe main objective of this project to suppress the harmonics and to improve power factor and efficiencyFlyback converter is widely adopted for low-power.

5 was measured at selected line voltages for 20-W 40-W 60-W and 80-W output power. Efficiency was over 80 for any of the tested conditions comfortably exceeding the target requirements.

Flyback Converter An Overview Sciencedirect Topics

Flyback Converter Input Current Waveform Under Ccm Operation Download Scientific Diagram

Flyback Switch Control Signal Flyback Transformer Primary Voltage V P Download Scientific Diagram

Flyback Converter An Overview Sciencedirect Topics

Designing A Flyback Converter With The Max17291 Micropower Boost Converter Ic

A Topology Of Flyback Converter Along Important Challenges In Download Scientific Diagram

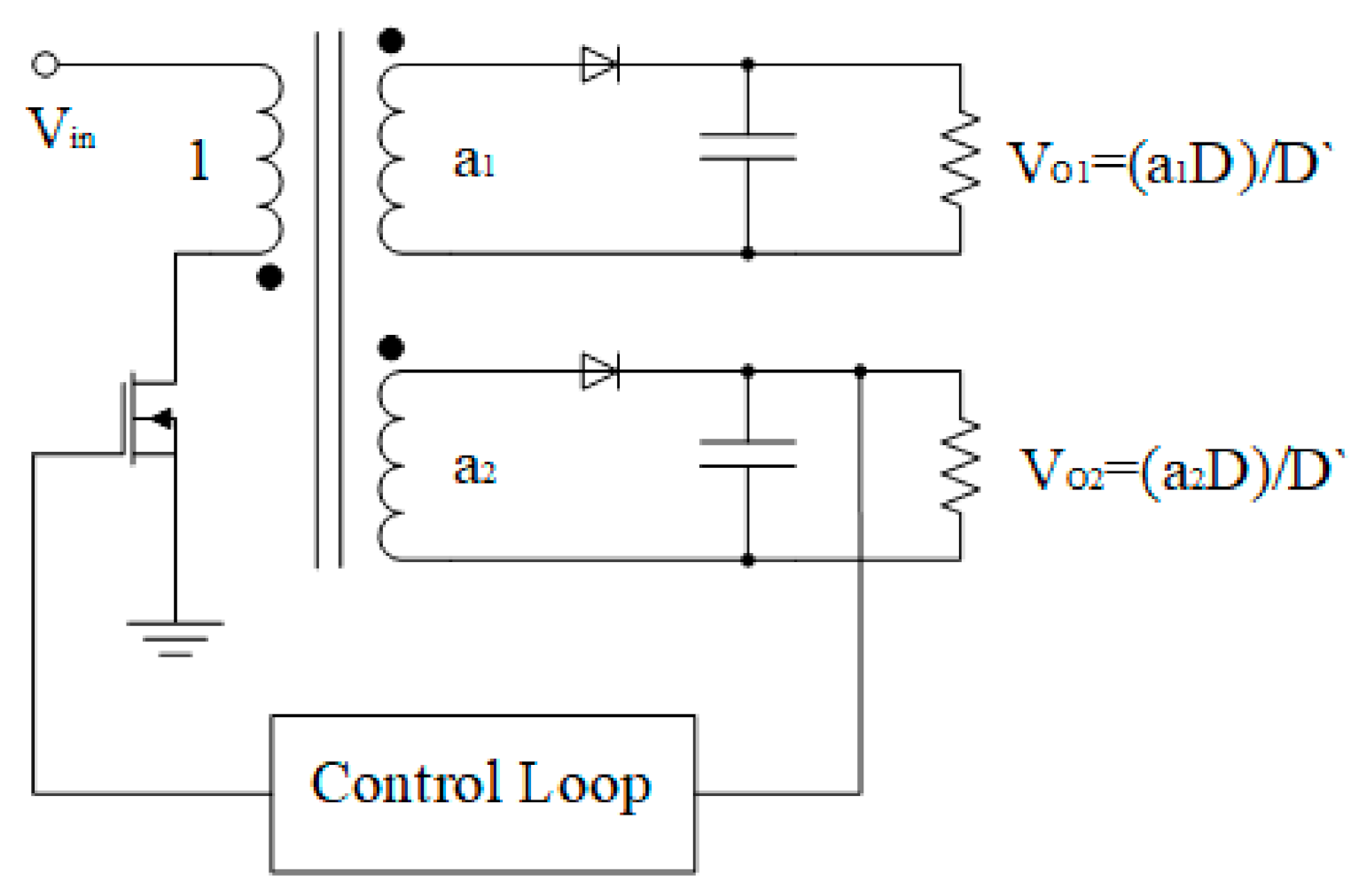

Energies Free Full Text Compensated Single Input Multiple Output Flyback Converter Html
